Displacement |
Bore Size
Stroke |
Kit Part # |
Comp. Ratio |
Cylinder Modification & Replacement
Parts
All replacement pistons are sold complete with Piston pin, Retainer Clips,
and rings |
|
CB400F 1975-77
Kit includes (4)
Pistons, Ring Sets, Piston Pins, Retainer
Clips |
458cc
 |
more info >> |
DP458 |
|
more info >>
Custom
Pistons |
|
|
CBR600 F2 & F3 1991-98 |
|
|
|
|
|
CBR600SF Hornet 1998-04 |
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Spring Steel Head Gasket |
| 618cc
List $649
Dynoman $469.95 |
2.598" or 66.00mm
1mm oversize
Stroke - 45.17mm |
R618 |
Stock |
Cylinder boring only
Piston: 4513M06600
Rings: 2598XA Piston Pins: S532
Retainer Clips: CW17
Spring Steel Head Gasket: W5475 |
|
| 637cc
List $649
Dynoman $469.95 |
2.638" or 67.00mm
2mm oversize
Stroke - 45.17mm |
R637 |
13:1 |
Cylinder boring only
Piston: 4513M06700
Rings: 2598XA Piston Pins: S532
Retainer Clips: CW17
Spring Steel Head Gasket: W5475 |
|
|
CBR600F4/4I 1999-06 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Spring Steel Head Gasket |
| 599cc
List $650
Dynoman $469.95 |
2.638" or 67.00mm
Standard Bore
Stroke - 42.5mm |

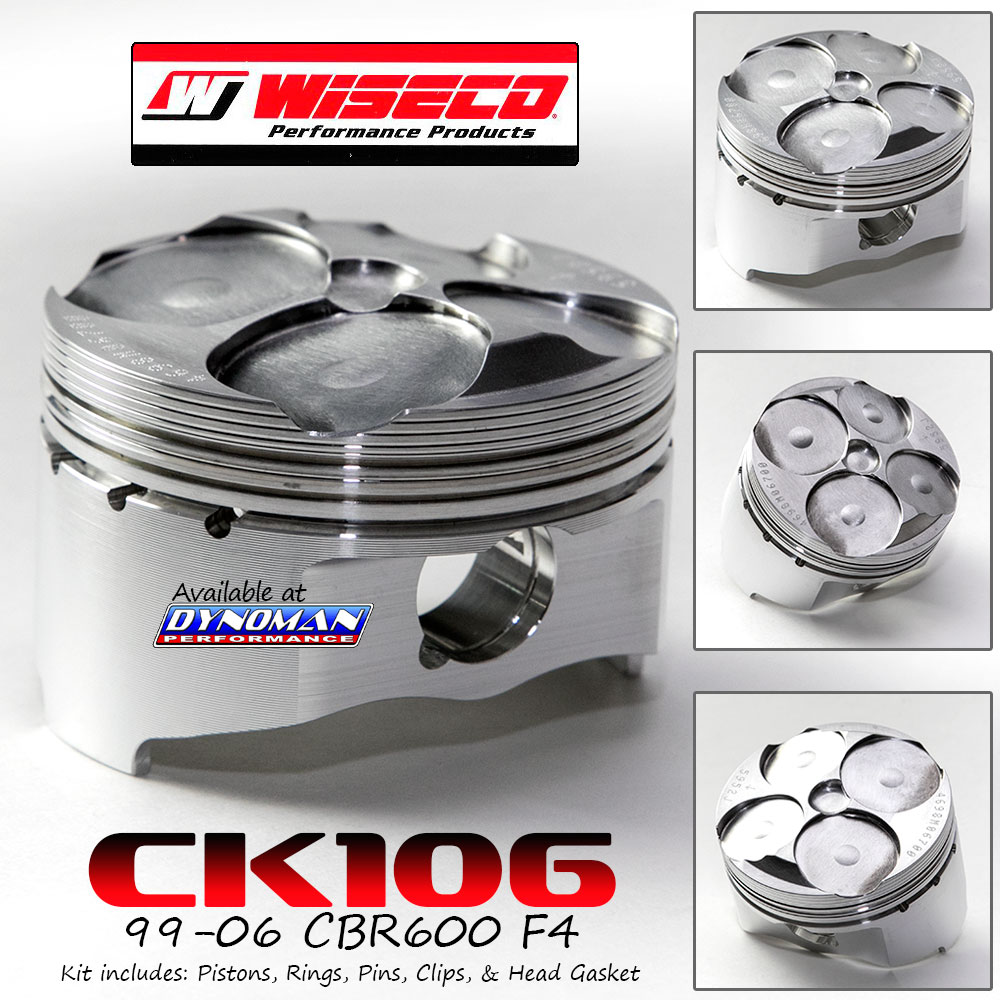

CK106 |
12.8:1 |
Cylinder deglazing required
Piston: 4698M06700 Rings: 2638XA
Piston Pins: S532
Retainer Clips: CW17 Spring Steel
Head Gasket: W5904 |
|
| 618cc
List $650
Dynoman $469.95 |
2.677" or 68.00mm
1mm oversize
Stroke - 42.5mm |
CK126 |
13.06:1 |
Cylinder boring and re-plating required
Piston: 4698M06800 Rings: 2677XA
Piston Pins: S532
Retainer Clips: CW17 Spring Steel
Head Gasket: W6012 |
|
|
CBR600RR 2003-06 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, and Retainer Clips |
599cc
Skirt Coated
List $616
Dynoman $449.95 |
2.638" or 67.00mm
Standard Bore
Stroke - 42.5mm |
CK169 |
12.4:1 |
Cylinder deglazing required
Piston: TBA Rings: TBA
Piston Pins: TBA
Retainer Clips: TBA Must use
OEM Head Gasket |
|
618cc
Skirt Coated
List $616
Dynoman $449.95 |
2.677" or 68.00mm
1mm oversize
Stroke - 42.5mm |
CK170 |
12.7:1 |
Cylinder boring and replating required
Piston: TBA Rings: TBA
Piston Pins: TBA
Retainer Clips: TBA Optional
Spring Steel Head Gasket: TBA |
|
|
Hawk 650NT (Twin) |
|
|
|
|
|
|
Kit includes: (2) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Head and Base Gasket Kit |
| 663cc
List $316
Dynoman $279.95 |
3.150" or 80.00mm
1mm oversize
Stroke - 65.9mm |
K663 |
11:1 |
Cylinder boring only
Piston: 4633M08000 Rings:
3150XG Piston Pins: S520
Retainer Clips: CW20 Head/Base
Gasket Kit: W5577 |
|
|
696cc
List $316
Dynoman $279.95
|
3.228" or 82.00mm
3mm oversize
Stroke - 65.9mm |
K696 |
11:1 |
Cylinder boring only
Piston: 4633M08200 Rings:
3228XG Piston Pins: S520
Retainer Clips: CW20 Head/Base
Gasket Kit: W5577 |
|
CB750 F & K Models 1969-76
(2-Valve) |
|
|
|
|
|
Kit includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) CFM20 Head Gasket |
| 836cc
List $580
Dynoman $429.95
|
2.559" or 65.00mm
3mm oversize
Stroke - 63mm |

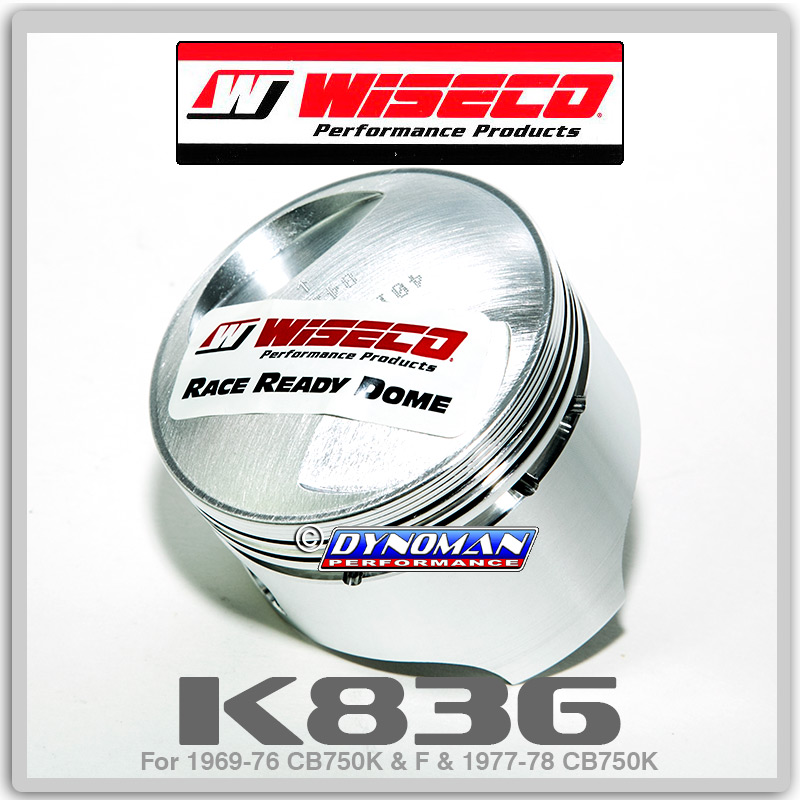

K836 |
10.25:1 |
Cylinder boring only
Piston: 4016M06500 Rings:
2559XC Piston Pins: S522
Retainer Clips: CW15 CFM20 Head
Gasket: W4934
Optional Sleeve: H15SL Optional Base Gasket: W6046 |
|
| Also
available - JE 836cc Piston Kit in 10.5:1 or 12:1
more info >> |
| 1000cc

|
more info >> |
DP1000 |
|
more info >>
Custom
Pistons |
|
CB750 F2
(black motor)
1977-78 |
|
|
|
|
|
| 836cc

|
more info >> |
DP836 |
10.25:1 |
For 1977-78 CB750 F2 (black motor)
more info >>
Custom Pistons!
Pistons, Rings, Pins, Clips, and Head
Gasket |
|
|
CB750 1979-82 (4-Valve) |
|
|
|
|
|
|
Kit includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) CFM20 Head Gasket |
| 823cc
List $581
Dynoman $429.95 |
2.559" or 65.00mm
3mm oversize
Stroke - 62mm |

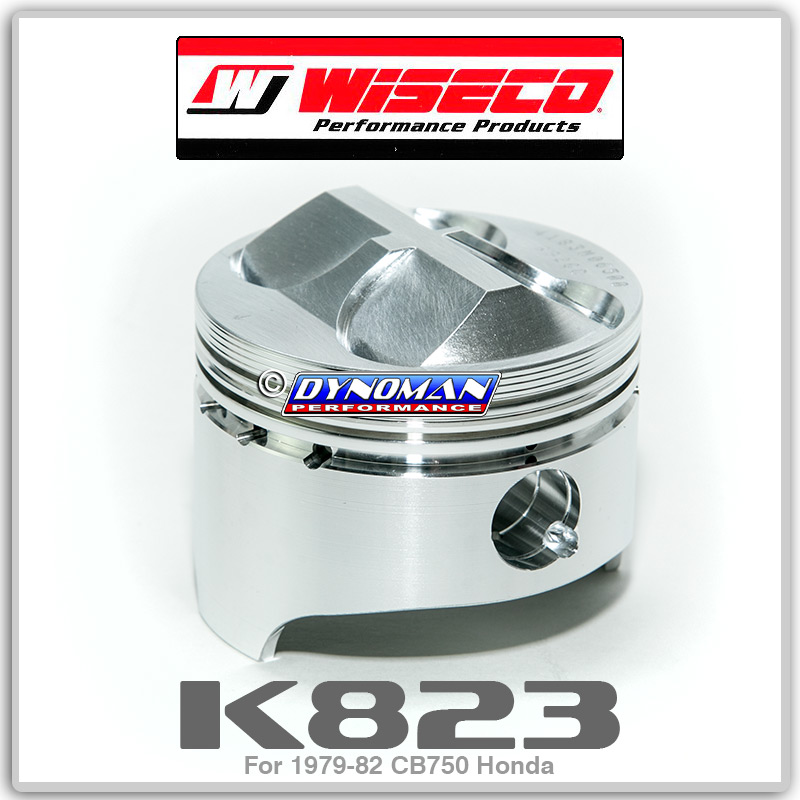

K823 |
10.25:1 |
Cylinder boring only
Piston: 4183M06500 Rings: 2559XC
Piston Pins: S522
Retainer Clips: CW15 CFM20 Head Gasket:
W3932
Optional: Sleeve: H28SL Optional Base Gasket: W6047 |
|
| 890cc
List $581
Dynoman $429.95 |
2.658" or 67.50mm
5.5mm oversize
Stroke - 62mm |

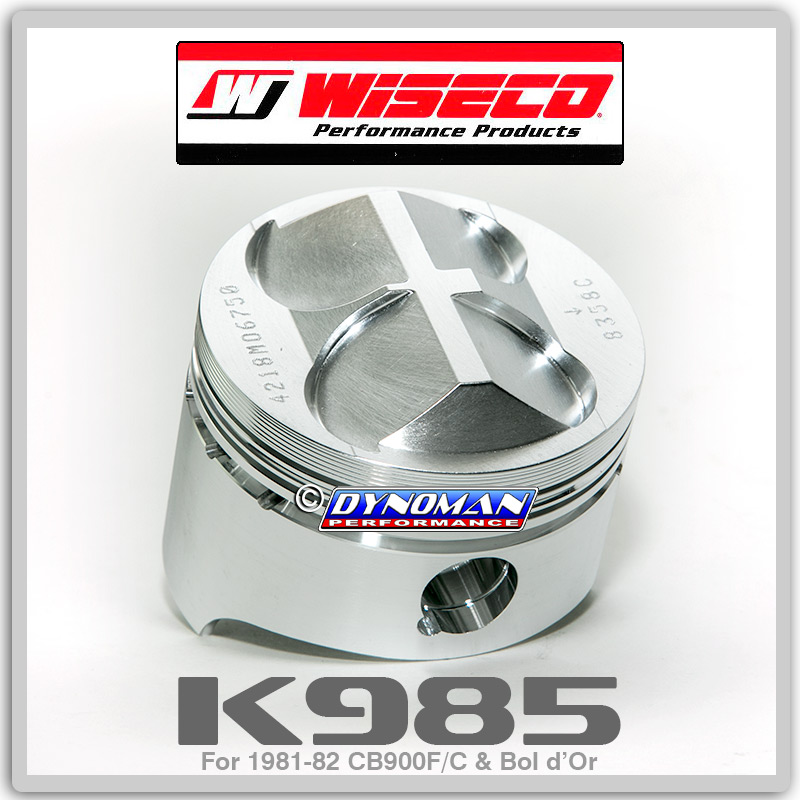

K985 |
10.25:1 |
Cylinder boring
and resleeving required.
Piston: 4218M06750 Rings: 2658XC
Piston Pins: S522
Retainer Clips: CW15 CFM20 Head Gasket:
W3923
Optional Sleeve: H113SL Optional Base Gasket: W6047 |
|
|
CB900F 1979-82 |
|
|
|
|
|
|
Kit includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) CFM20 Head Gasket |
| 985cc
List $581
Dynoman $429.95 |
2.658" or 67.50mm
3mm oversize
Stroke - 68.78mm |
K985 |
10.25:1 |
Cylinder boring only
Piston: 4218M06750 Rings: 2658XC
Piston Pins: S522
Retainer Clips: CW15 CFM20 Head Gasket:
W3923
Optional Sleeve: H97SL Optional Base Gasket: W6047 |
|
|
CBR900RR 1992-95 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Spring Steel Head Gasket |
| 945cc
List $672
Dynoman $479.95 |
2.835" or 72.00mm
2mm oversize
Stroke - 58mm |
R945 |
12:1 |
Cylinder boring only
Piston: 4538M07200 Rings: 2835XA
Piston Pins: S532
Retainer Clips: CW17 Spring Steel Head Gasket:
W5484
Optional Sleeve: 3005FA |
|
| 997cc
List $672
Dynoman $479.95 |
2.913" or 74.00mm
4mm oversize
Stroke - 58mm |
R997 |
12:1 |
Resleeving required
Piston: 4538M07400 Rings: 2913XA
Piston Pins: S532
Retainer Clips: CW17 Spring Steel Head Gasket:
W5485
Optional Sleeve: 3005FA |
|
|
CBR900RR 1996-99 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Spring Steel Head Gasket |
| 945cc
List $672
Dynoman $479.95 |
2.835" or 72.00mm
1mm oversize
Stroke - 58mm |
R944 |
12:1 |
Cylinder boring only
Piston: 4608M07200 Rings: 2835XA
Piston Pins: S532
Retainer Clips: CW17 Spring Steel Head Gasket:
W5532
Optional Sleeve: 3005FA |
|
| 970cc
List $672
Dynoman $479.95 |
2.874" or 73.00mm
2mm oversize
Stroke - 58mm |
R970 |
12:1 |
Resleeving required
Piston: 4609M07300 Rings: 2874XA
Piston Pins: S532
Retainer Clips: CW17 Spring Steel Head Gasket:
W5532
Optional Sleeve: 3005FA |
|
|
CBR954RR 2002-04 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, and Retainer Clips |
| 954cc
List $677
Dynoman $489.95 |
2.953" or 75.00mm
Standard Bore
Stroke - 54mm |
CK161 |
13.2:1 |
Cylinder deglazing required
Piston: 4855M07500 Rings: 2953XG
Piston Pins: S688
Retainer Clips: CW17 Must use OEM Head Gasket |
|
| 980cc
List $677
Dynoman $489.95 |
2.992" or 76.00mm
2mm oversize
Stroke - 58mm |
CK162 |
13.5:1 |
Cylinder boring and re-plating required
Piston: 4855M07600 Rings: 2953XG
Piston Pins: S688
Retainer Clips: CW17 Optional Spring Steel
Head Gasket: W6322 |
|
|
CBR1000F thru 1991, 1993-96 |
|
|
|
|
|
CBR1000 Big One 1993-99 |
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, and Retainer Clips |
| 1049cc
List $586
Dynoman $449.95 |
3.110" or 79.00mm
2mm oversize
Stroke - 53.5mm |
R1049 |
12:1 |
Cylinder boring only
Piston: 4424M07900 Rings: 3110XG
Piston Pins: S520
Retainer Clips: CW20
Optional CFM20 Head Gasket: W5177 |
|
|
CBR1000RR 2004-05 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, and Retainer Clips |
|
998cc
List $677
Dynoman $489.95 |
2.953" or 75.00mm
2mm oversize
Stroke - 56.50mm |
CK186 |
13.2:1 |
Cylinder boring only
Piston: TBA Rings: Piston Pins:
Retainer Clips: |
|
| 1012cc
List $677
Dynoman $489.95 |
2.972" or
75.50mm
.5mm oversize
Stroke-56.50mm |
CK187 |
13.2:1 |
Cylinder
boring and replating required |
|
RVT1000R/RC51
2000-06 |
|
|
|
|
|
|
Kit includes: (2) pistons,
ring sets, Piston pins, Retainer Clips (Must use OEM Head Gasket) |
| 999cc
List $414
Dynoman $339.95 |
3.937" or 100.00mm
Standard
Stroke - 68.9mm |
CK118 |
12.7:1 |
Cylinder deglazing required
Piston: 4742M10000 Rings: 3937XS
Piston Pins: S551
Retainer Clips: W5860 Must use OEM Head Gasket |
|
|
CB1100 F&R Models 1982-84 |
|
|
|
|
|
Kit includes: (4) pistons,
ring sets, Piston pins, Retainer Clips, and (1) CFM20 Head Gasket |
| 1123cc
List $591
Dynoman $439.95 |
2.835" or 72.00mm
2mm oversize
Stroke - 68.9mm |

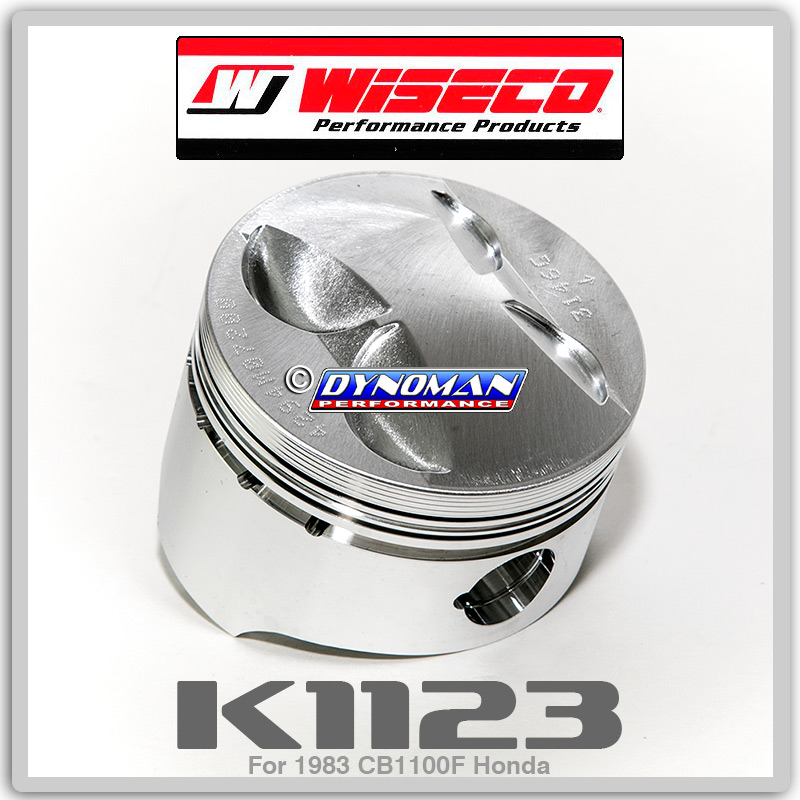

K1123 |
10.25:1 |
Cylinder boring only
Piston: 4294M07200 Rings: 2835XC
Piston Pins: S523
Retainer Clips: CW17 CFM20 Head Gasket:
W3924
Optional Sleeve: H118SL Optional Base Gasket: W6048 |
|
|
CBR1100XX 1997-03 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Spring Steel Head Gasket |
| 1195cc
List $715
Dynoman $519.95 |
3.198" or 81.00mm
2mm oversize
Stroke - 57.97mm |
CK100 |
11.0:1 |
Cylinder boring only
Piston: 4682M08100 Rings: 3189XG
Piston Pins: S597
Retainer Clips: CW19 Spring Steel Head Gasket:
W5783
Optional Sleeve: H5332SL |
|
|
VTX1800 2002-06 |
|
|
|
|
|
|
Kit Includes: (4) Pistons,
Ring Sets, Piston Pins, Retainer Clips, and (1) Head and Base Gasket |
| 1795cc
List $477
Dynoman $369.95 |
3.976" or 101.00mm
Standard
Stroke - 112mm |
CK146 |
10.5:1 |
Cylinder deglazing required
Piston: 4800M10100 Rings: 10100XS
Piston Pins: S657
Retainer Clips: W6045 Head & Base Gasket: W6166 |
|
| 1934cc
List $803
Dynoman $569.95 |
4.127" or 104.77mm
3.77mm oversize
Stroke - 112mm |
CK136 |
10.5:1 |
Resleeving required
Piston: 4775M10477 Rings: 4127GF
Piston Pins: S657
Retainer Clips: W6045 Head & Base Gasket: W6158
Optional Sleeve: W6040 |
|
