MINI COILS: For use with Dyna 2000 & 3000
Part #	# of out puts	Primary resistance	Secondary resistance	Color	Qty	Price
DC1-2 MINI COILS	2	3.0 ohms	11,500 ohms	Gray	2	Retail $168.00 DP PRICE $149.95
DC1-2 Mini Coil Set with DW600 Resistor Wires Just $16.95 more!
DC1-3 MINI COIL	2	3.0 ohms	11,500 ohms	Gray	1	Retail $100.00 DP PRICE $89.95
DC1-3 Mini Coil with DW600 Resistor Wires  Just $19.95 more!
DC3-2 COILS	1	3.0 ohms	11,500 ohms	Gray	2	Retail $160.00 DP PRICE $149.95
DC3-2 Mini Coil Set with DW600 Resistor Wires Just $16.95 more!
DC3-3 MINI COIL	1	3.0 ohms	11,500 ohms	Gray	1	Retail $100.00 DP PRICE $89.95
DC3-3 Mini Coil with DW600 Resistor Wires Just $19.95 more!
more info on Dyna Mini Coils >>

DYNA Coils are made to replace stock coils. Choose from three configurations and five variations of resistance for different a

DYNA COILS work with point ignitions, aftermarket electronic ignitions and factory electronic ignitions. Before selecting a coil, check the coil primary resistance requirements as specified by the manufacturer of the ignition being used.

FEATURES & BENEFITS:

• No exposed laminations to rust and degrade performance.

• High voltage and primary terminals machined from brass.

• Ultrasonically welded and sealed against moisture.

• Compact size fits easily under stock covers.

• Peak gap current in excess of 50mA.

• High impact thermoplastic housing.

• Over 40,000 volts per output.

• Accepts 7 to 8.8mm wires.

• 1 year warranty.

DYNA IGNITION SYSTEM COIL REQUIREMENTS -

DYNA 4000 Pro Ignition:
Must use DC9-1 or DC9-2. The DYNA 4000 ignition system is designed for racing only and is matched to the characteristics of the DC9-1 coil for optimum energy production.

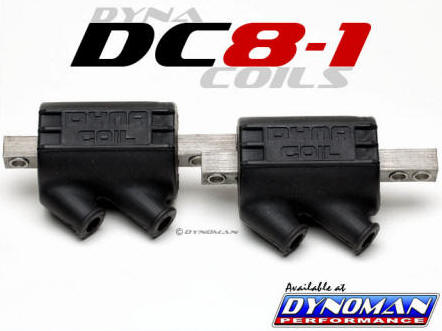

Recommended - DC7-1, DC8-1, DC10-1, DC3-1, DC6-1. Use coil with 5.0 ohms primary resistance for street use, 3.0 ohms primary resistance for racing applications.

Single Plug Head:

Single Fire - Use two single output coils, street or strip.

Dual Fire - Use one dual output coil, street or strip.

Dual Plug Head:

Single Fire - Use two dual output coils, street only.

Dual Fire - Use two dual output coils, street or strip.

Dual Plug Head, single fire racing applications:

Use two DC2-1, 1.5 ohm coils, connected in series for each cylinder. Since these coils are dual tower, one tower of each coil must be shorted to chassis ground.

DYNA S (non-Harley):

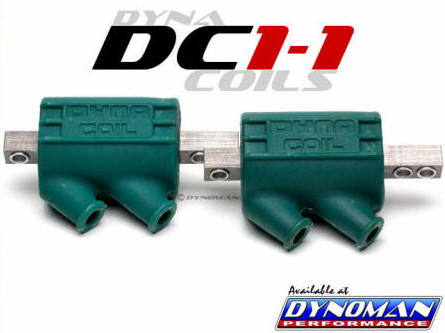

Recommended - DC1-1. Use coil with 3.0 ohms primary resistance.
