JE PISTONS - KAWASAKI
Industry leader in forged racing pistons!

2006-09 NINJA 250 R

2006-09 NINJA EX 650 R

2003-06 ZX6R

2003-06 ZX6RR
2007-08 ZXR6

1991-95 ZX7R

1996-03 ZX7R
1996 750RR

1994-97 ZX9R

1998-2003 ZX9R (Flat Top)

KZ 900/1000
All except "J" Models

2004-06 ZX10R

2008-09 ZX10R

1990-00 ZX11

1997-01 ZRX 1100,
1990-01 ZZR,
1995-96 GPZ 1100

2001-05 ZRX1200

2000-05 ZX12R

2006-09 ZX14

2006-09 NINJA 250 R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Sleeve #	Please email Dynoman for price and availability

249cc	62mm	STD	284686	12.0:1	NEW	FSR	XA6200	Deglaze Only

249cc	62mm	STD	284687	12.5:1	NEW	FSR	XA6200	Deglaze Only

249cc	62mm	STD	284688	13.0:1	NEW	FSR	XA6200	Deglaze Only

2003-06 ZX6RR 2007-08 ZXR6
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Sleeve #	Please email Dynoman for price and availability

617cc	68mm	+1mm	247951	13.5:1	EMAIL	FSR	XA6800	Bore & Replate

636cc	69mm	+2mm	222110	13.5:1	EMAIL	FSR	XA6900	Bore & Replate

2006-09 NINJA 650 R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Sleeve #	MSRP $278.00 Please email us for special pricing

649cc	83mm	STD	284691	12.5:1	NEW	FSR	XG8300	Deglaze Only

649cc	83mm	STD	284692	13.5:1	NEW	FSR	XG8300	Deglaze Only

1991-95 ZX7R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #		Please email Dynoman for price and availability

770cc	72mm	+1mm	153764	12.0:1	180	Round	XA7200	JC8274	Bore & Hone	M

791cc	73mm	+2mm	153765	12.0:1	190	Round	XA7300	JC8385	Bore & Hone	L

1996-03 ZX7R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #		Please email Dynoman for price and availability

770cc	74mm	+1mm	149299	13.0:1	188	Round	XA7400	JC8428	Bore & Hone	L

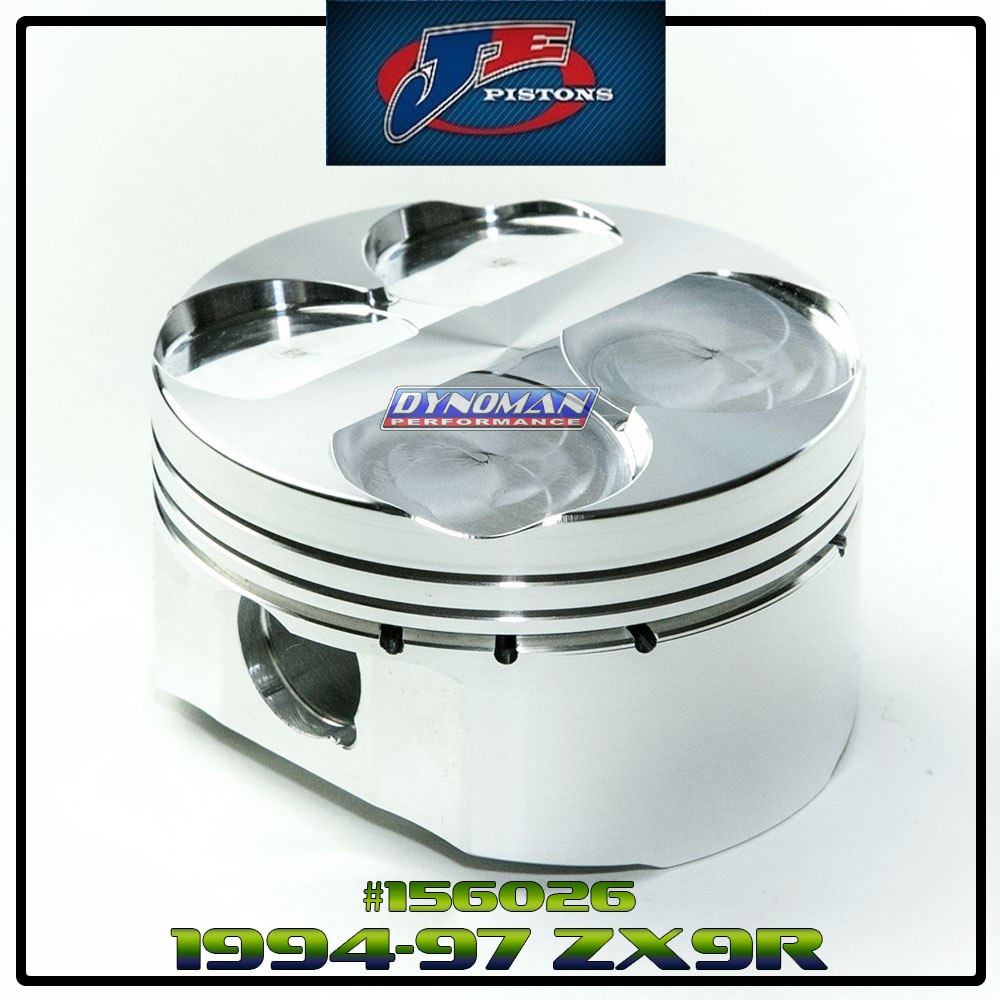

1994-97 ZX9R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

924cc	74mm	+1mm	156026	13.0:1	188	Round	XA7400	JC8272	Bore & Hone

1998-2003 ZX9R (Flat Top)
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

936cc	76.5mm	+1.5mm	157592	12.0:1	208	Round	XG7650	JC8515	Bore & Hone 1,2

KZ 900/1000 - All except "J" Models Dynoman recommends adding a set of RS34 Mikuni carburetors and a Dyna 2000 or Dyna S Ignition with these kits!
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #

1015cc	70mm	STD	137712	10.25:1	193	Round	XC7000	OEM	Bore & Hone	M	MSRP $534.00 Dynoman Price $479.95

1075cc	72mm	+2mm	125083	8.5:1	195	Round	XC7200	JC8154	Bore & Hone	M

1075cc	72mm	+2mm	125473	10.25:1	201	Round	XC7200	JC8154	Bore & Hone		MSRP $588.00 Dynoman Price $479.95

1200cc	76mm	+6mm	132493	10.25:1	220	Round	XC7600	JC8156	JE3200	M	MSRP $588.00 Please email us for special pricing

1327cc	80mm	+10mm	144534	14.0:1	267	Round	XC8000	JC8158	JE3350	L	MSRP $588.00 Please email us for special pricing

1394cc	82mm	+12mm	144535	14.0:1	275	Round	XC8200	JC8159	JE3450	L	MSRP $588.00 Please email us for special pricing

1428cc	83mm	+13mm	144536	14.0:1	287	Round	XC8300	JC8160	JE3450	L	MSRP $598.00 Please email us for special pricing

2004-06 ZX10R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Sleeve #

998cc	76mm	STD	222111	13.5:1	175	FSR	XG7600	Deglaze	MSRP $723.00 Please email us for special pricing

1051cc	78mm	+2mm	222112	13.5:1	183	FSR	XG7800	Bore & Replate	MSRP $723.00 Please email us for special pricing

1078cc	79mm	+3mm	247931	13.5:1	185	FSR	XG7900	Bore & Replate	MSRP $723.00 Please email us for special pricing

2008-09 ZX10R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

998cc	76mm	STD	284718	13.5:1	EMAIL	FSR	XG7600	OEM	Deglaze Only

1051cc	78mm	+2mm	284719	13.5:1	EMAIL	FSR	XG7800	EMAIL	Bore & Replate

1078cc	79mm	+3mm	284720	13.5:1	EMAIL	FSR	XG7900	EMAIL	Bore & Replate

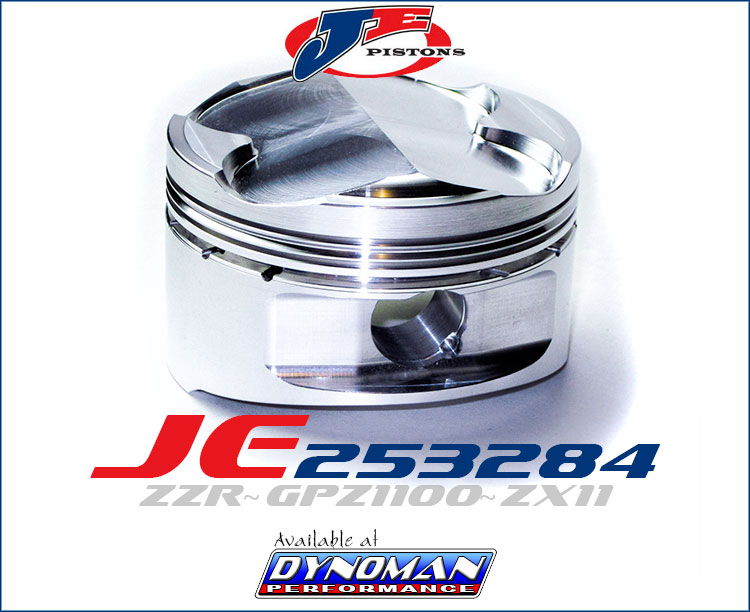

1997-2001 ZRX 1100, 1990-2001 ZZR, 1995-1996 GPZ 1100
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

1080cc	77mm	+1mm	253283	12.0:1	215	Round	XG7700	JC8603	Bore & Hone

1109cc	78mm	+2mm	253284	12.0:1	215	Round	XG7800	JC8273	Bore & Hone	MSRP $658.00 Dynoman Price $499.95

1990-00 ZX11
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

1080cc	77mm	+1mm	253283	12.0:1	215	Round	XG7700	JC8603	Bore & Hone

1109cc	78mm	+2mm	253284	12.0:1	215	Round	XG7800	JC8358	Bore & Hone

2001-2005 ZRX1200 •Machined from 2618 T6 high tensile forged aluminum •Dome/Dish features smooth flowing radii and require no deburring or preparation •JE designs are specifically engineered for extreme applications including professional competition •Pistons, rings, pins, clips included
Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Please email Dynoman for price and availability

284695	1164cc	79mm	STD	12.5:1	NEW	Round	XG7900

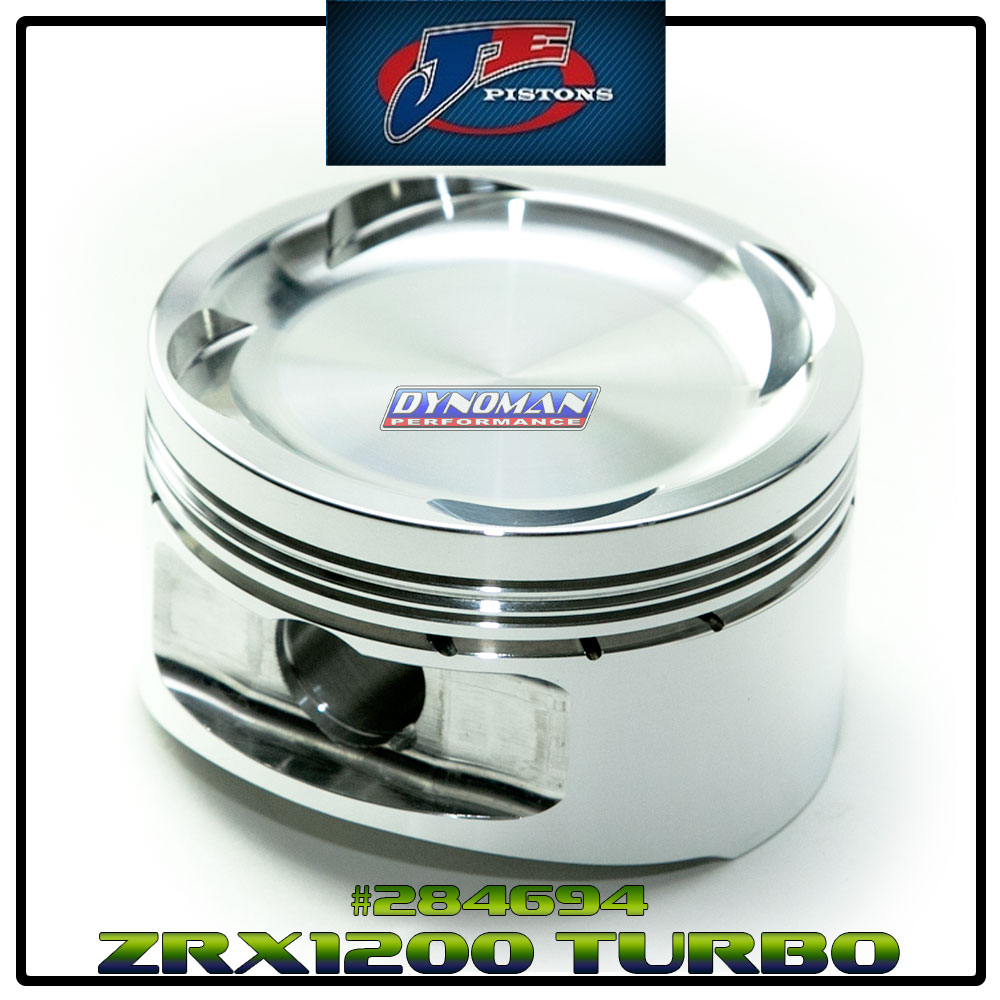

284694	1164cc	79mm	STD	8.5:1	NEW	Round	XG7900

284696	1224cc	81mm	+2mm	12.5:1	NEW	Round	XG8100

2000-05 ZX12R
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

1198cc	83mm	STD	222108*	9.8:1	229	Round	XG8300	JC8642	Deglaze

1198cc	83mm	STD	261533	13.0:1	234	FSR	XG8300	JC8642	Deglaze

1287cc	86mm	+3mm	192315	13.0:1	260	FSR	XC8600	JC8641	Bore & Replate

2006-09 ZX14
Disp.	Bore Size	Over Size	Piston Kit #	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Gasket #	Sleeve #	Please email Dynoman for price and availability

1352cc	84mm	STD	247619	13.5:1	232	FSR	OEM (NOT INCL)	OEM	Deglaze

1352cc	84mm	STD	247620*	9.5:1	248	Round	OEM (NOT INCL)	OEM	Deglaze

1417cc	86mm	+2mm	247621	13.5:1	245	FSR	XR8600	EMAIL	Bore & Replate

Footnotes:

A	fits 3.480 and 3.500 stroke
B	Oil Rail Support is Included
C	.927 Pin Diameter
D	.912 Pin Diameter
E	.990 wrist pin
F	Indicates 1.040 Pin Diameter
H	Indicates 1.094 Pin Diameter
J	Indicates 3mm Oil Ring
K	.945 Pin Diameter
L	Limited Quantities available
M	Made To Order
P	.975 Pin Diameter
S	Solid dome design
W	428 Crank Shaft
X	angle milled heads
